Water Box
660 gallons of fresh water inside an insulated, heated, lockable box with a built-in pump and pressure tank. Set next to your office trailer by forklift and connected with a heated hose — running water without a city water hookup, year-round.
Your office trailer needs water, but there's no hookup on site. Without a reliable water supply, sinks and toilets are useless. The Water Box solves this — 660 gallons of fresh water inside an insulated, heated box with its own pump, set next to your trailer by forklift and connected with a heated hose.
Water is non-potable — for sinks and toilets. Provide drinking water for the crew separately.

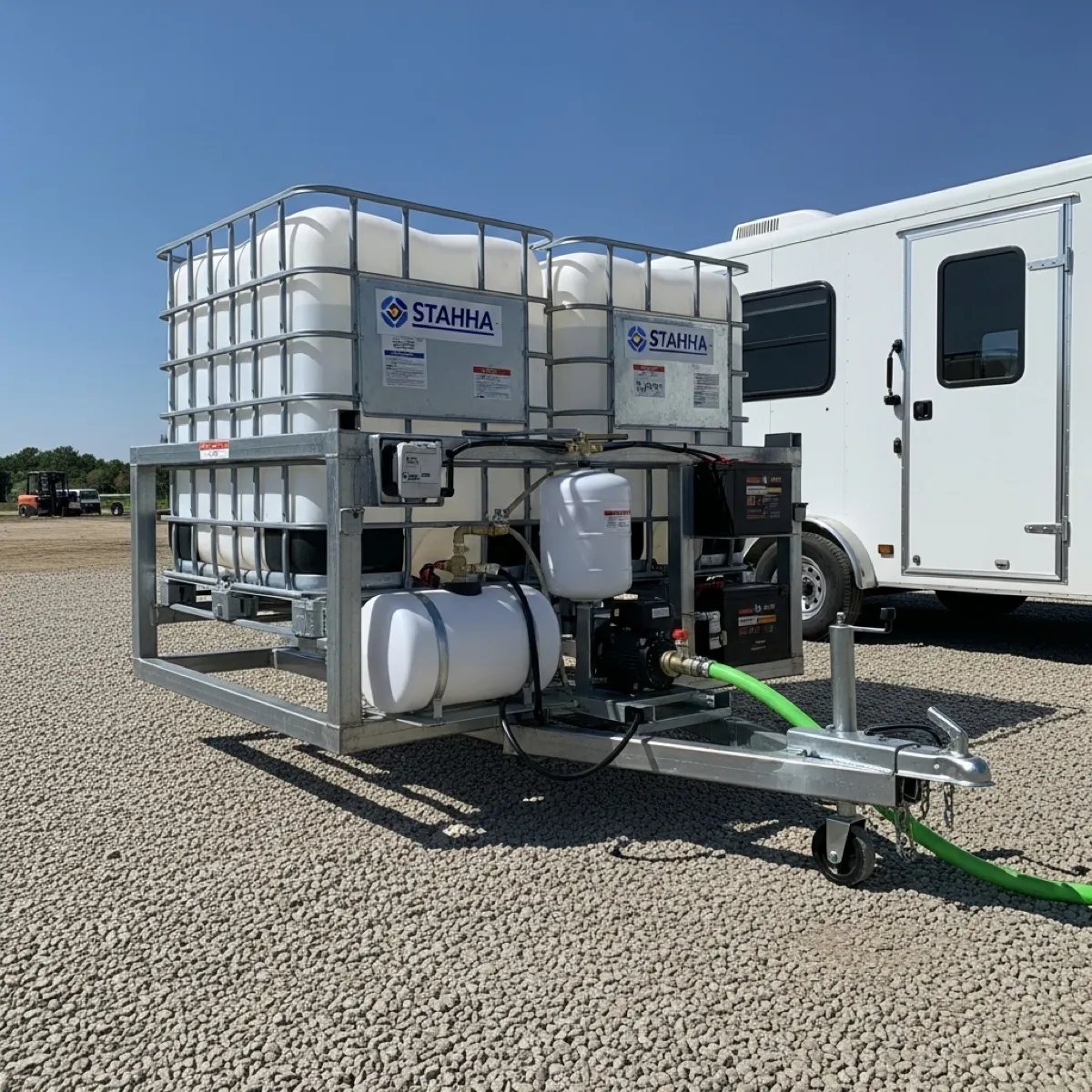

Inside and Out
Not an open tote sitting in the weather. Tanks, pumps, heater, and controls are all inside one insulated box. Interior photos show a Complete Box; your unit's layout varies by model.
See how the system works, how to prep your site, and how we service it →
Specifications
Water Box
- capacity
- 660 gallons (dual 330-gal totes inside the box)
- water Type
- Non-potable — for sinks and toilets
- dimensions
- 8 ft x 5 ft x 5 ft tall
- empty Weight
- Approx. 1,000 lbs
- enclosure
- Insulated, fully enclosed, lockable door
- freeze Protection
- 1,000W electric heater inside the box
- pump

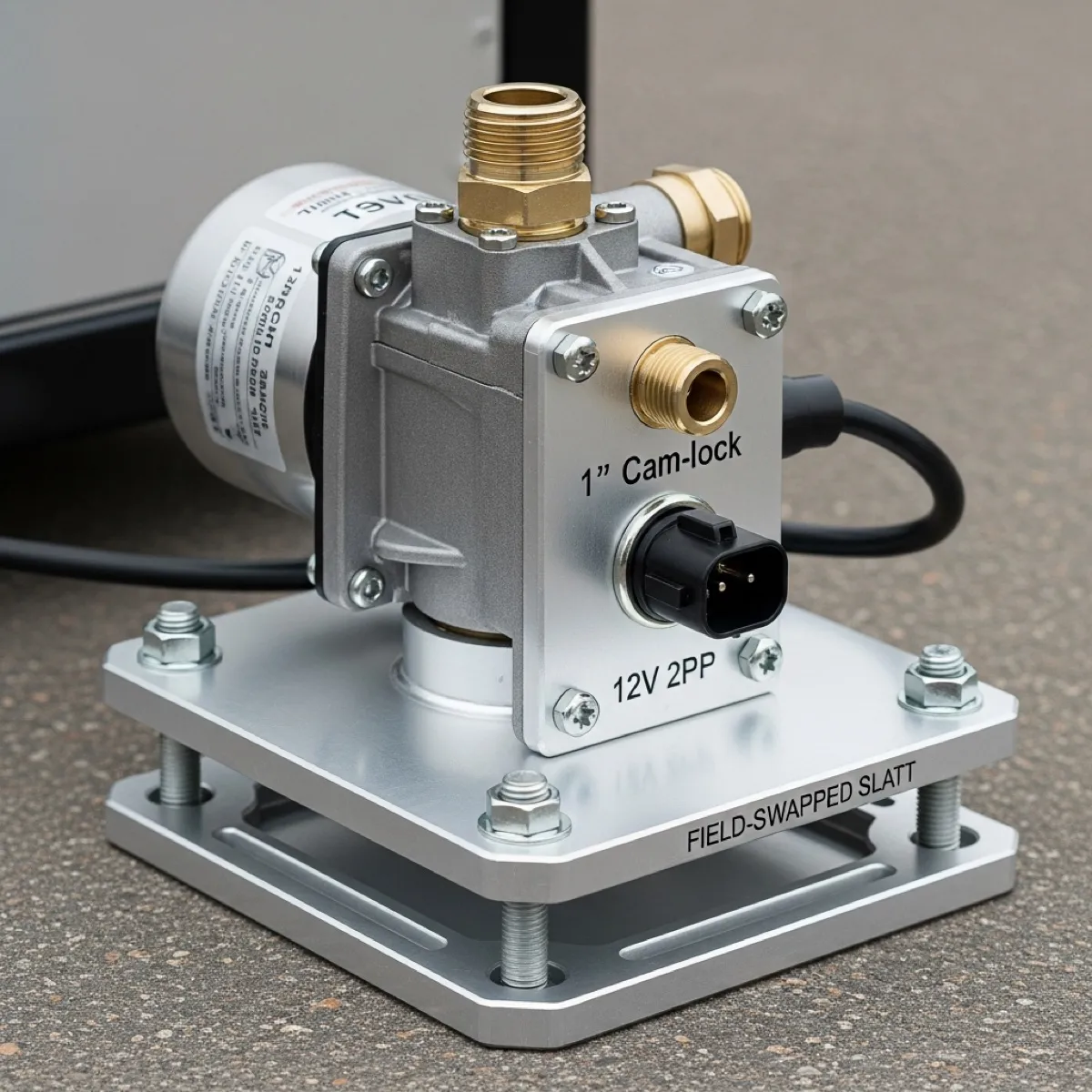

- High-flow Moro DC-10 (12V, ~20 GPM) plus demand pumping
- pressure Tank
- 20 gallon
- plumbing
- 1" throughout, 1" cam lock output
- connection
- Heated hose to trailer (garden hose thread adapter included)
- fill
- 1" cam lock fill port with overflow indicator
- site Power
- Dedicated 120V / 20A circuit
- battery
- Deep-cycle battery runs the pump if site power drops; power-loss alarm
- safety
- Float valve dry-run pump protection
- field Swap
- < 15 minutes, modular pump plate
- fill Rate
- 100 gal in 10 min
- performance
- Feeds 2x 8-stall shower trailers simultaneously
- transport
- Fork pockets — placed by forklift or skid loader with forks (no axles, wheels, or hitch)
- daisy Chain
- Up to 3 units (1,980 gal total) — cam lock links, tanks equalize, feeds multiple trailers at once
Features
Daisy-Chain: One Supply for Several Trailers
Water Boxes are purpose-built to link together. Up to 3 boxes work as one 1,980-gallon supply, and the pumps in one box can feed several restroom or shower trailers at the same time.
Up to 3 boxes act as one 1,980-gallon supply. One box can feed several trailers at once.
- Two pump types and a 20-gallon pressure tank in each box: a high-flow pump (~20 GPM) moves a lot of water fast, and demand pumping holds steady pressure at the fixtures.
- Feeds several restroom or shower trailers continuously from one connection point. Rated to run two 8-stall shower trailers at once.
- Moves 100 gallons in about 10 minutes, so it also works as a fast-fill station for trailer tanks.
